Koaxiálny kábel vonkajší závesný CAVEL DG113 PEM, 6,8mm, predaj na metre

Výrobca:	CAVEL

Dostupnosť:	skladom
Kúpou tohoto produktu získate 1 bod.

1,- € Vrátane DPH

Cena za 1m RG Ref.	RG 6+
Class CPR acc. to UE 305/2011 (DoP)	Fca
acc. to Standard	EN 50117-2-5

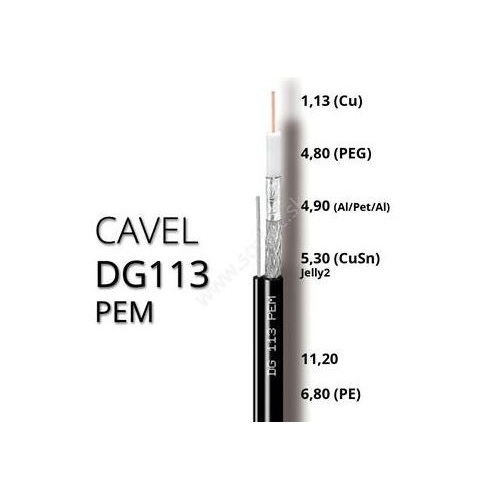

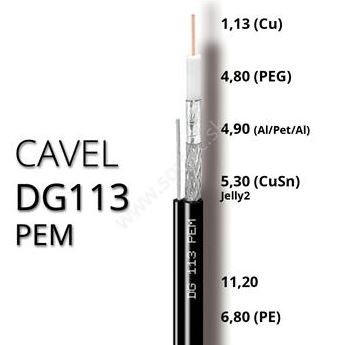

CONSTRUCTION DATA
Inner Conductor	O mm	1,13
material	Cu
Dielectric	O mm	4,80
material	PEG
Film Foil Laminate	material	APA
Braid	material	CuSn
Braid Optical Coverage	%	72
Diameter over Braid	O mm	5,12
Outer Sheath	O mm	6,8x11,2
material	PE
PHYSICAL DATA
Copper Content	kg/km	19,2
Cable Weight	kg/km	60,3
Min bending radius x 1/n	mm	35/70
Max.Tensile Strength	N	150
Fire Load	MJ/km	1299
kWh/km	361
ELECTRICAL DATA
Impedance	Ohm	75±3@200 MHz
Capacitance (@1kHz)	pF/m	52 ± 2
Velocity Ratio	%	85
Attenuation (at 20°C )
at 5 MHz	dB/100m	1,6
at 10 MHz	dB/100m	2,3
at 30 MHz	dB/100m	3,2
at 50 MHz	dB/100m	4,1
at 200 MHz	dB/100m	8,0
at 300 MHz	dB/100m	9,8
at 470 MHz	dB/100m	12,4
at 862 MHz	dB/100m	17,1
at 1000 MHz	dB/100m	18,5
at 1750 MHz	dB/100m	24,9
at 2150 MHz	dB/100m	27,9
at 2400 MHz	dB/100m	29,6
at 3000 MHz	dB/100m	33,4
Structural return loss (SRL)
at 5 - 470 MHz	dB	>30
at 470 - 1000 MHz	dB	>28
at 1000 - 2000 MHz	dB	>26
at 2000 - 3000 MHz	dB	>22
Shield Transfer Impedance (Zt)	Class	A
5 - 30 MHz	mOhm/m	< 5
Screening Attenuation (SA)	Class	A+
at 30 - 1000 MHz	dB	>95
at 1000 - 2000 MHz	dB	>85
at 2000 - 3000 MHz	dB	>75
Inner conductor resistance	Ohm/km	18,0 / 13,9
Loop resistance	Ohm/km	31,9
Sheat Insulation voltage (spark test)	kV	5,0
Maximum current (Ieff)	A	8
